Object Module

Collaboration diagram for Object Module:

Functions
long	jit_object_classname_compare (void *x, t_symbol *name)
	Compares object's class name with the name provided. More...
t_symbol *	jit_object_method_argsafe_get (void *x, t_symbol *s)
	Checks to see if symbol is safe to call as an attribute style argument. More...
void *	jit_object_new_imp (void *cn, void *p1, void *p2, void *p3, void *p4, void *p5, void *p6, void *p7, void *p8, void *dummy)
	Instantiates an object specified by class name. More...
void *	jit_object_method_imp (void *x, void *s, void *p1, void *p2, void *p3, void *p4, void *p5, void *p6, void *p7, void *p8)
	Calls an object method specified by method name. More...
void *	jit_object_method_typed (void *x, t_symbol *s, long ac, t_atom *av, t_atom *rv)
	Calls a typed object method specified by method name. More...
method	jit_object_getmethod (void *x, t_symbol *s)
	Retrieves an object method specified by method name. More...
long	jit_object_attr_usercanset (void *x, t_symbol *s)
	Determines if an object attribute is user settable. More...
long	jit_object_attr_usercanget (void *x, t_symbol *s)
	Determines if an object attribute is user gettable. More...
void *	jit_object_attr_get (void *x, t_symbol *attrname)
	Retrieves an object's attribute pointer specified by attribute name. More...
t_jit_err	jit_object_free (void *x)
	Frees an object. More...
t_symbol *	jit_object_classname (void *x)
	Retrieves an object's class name. More...
void *	jit_object_class (void *x)
	Retrieves an object's class pointer. More...
void *	jit_object_register (void *x, t_symbol *s)
	Registers an object in the named object registry. More...
t_jit_err	jit_object_unregister (void *x)
	Unregisters an object from the named object registry. More...
void *	jit_object_findregistered (t_symbol *s)
	Retrieves a registered object associated with name. More...
t_symbol *	jit_object_findregisteredbyptr (void *x)
	Retrieves a registered object's name. More...
void *	jit_object_attach (t_symbol *s, void *x)
	Attaches an object as a client of a named server object for notification. More...
t_jit_err	jit_object_detach (t_symbol *s, void *x)
	Detaches a client object from a named server object. More...
t_jit_err	jit_object_notify (void *x, t_symbol *s, void *data)
	Notifies all client objects for a named server object. More...
t_jit_err	jit_object_importattrs (void *x, t_symbol *s, long argc, t_atom *argv)
	Imports object attributes from an XML file. More...
t_jit_err	jit_object_exportattrs (void *x, t_symbol *s, long argc, t_atom *argv)
	Exports object attributes to an XML file. More...
t_jit_err	jit_object_exportsummary (void *x, t_symbol *s, long argc, t_atom *argv)
	Exports object summary to an XML file. More...

Detailed Description

Function Documentation

jit_object_attach()

void* jit_object_attach	(	t_symbol *	s,
		void *	x
	)

Attaches an object as a client of a named server object for notification.

Parameters

s	name of server object
x	client object pointer

Returns

If successful, server object pointer. Otherwise NULL.

References object_attach().

Referenced by max_jit_mop_inputs(), max_jit_mop_notify(), and max_jit_mop_outputs().

Here is the call graph for this function:

jit_object_attr_get()

void* jit_object_attr_get	(	void *	x,
		t_symbol *	attrname
	)

Retrieves an object's attribute pointer specified by attribute name.

Parameters

x	object pointer
attrname	attribute name

Returns

attribute object pointer

References object_attr_get().

Here is the call graph for this function:

jit_object_attr_usercanget()

long jit_object_attr_usercanget	(	void *	x,
		t_symbol *	s
	)

Determines if an object attribute is user gettable.

Parameters

x	object pointer
s	attribute name

Returns

1 if gettable, 0 if not gettable

References object_attr_usercanget().

Here is the call graph for this function:

jit_object_attr_usercanset()

long jit_object_attr_usercanset	(	void *	x,
		t_symbol *	s
	)

Determines if an object attribute is user settable.

Parameters

x	object pointer
s	attribute name

Returns

1 if settable, 0 if not settable

References object_attr_usercanset().

Referenced by max_jit_attr_args().

Here is the call graph for this function:

jit_object_class()

void* jit_object_class

(

void *

x

)

Retrieves an object's class pointer.

Parameters

x	object pointer

Returns

class pointer

References object_class().

Referenced by jit_object_method_argsafe_get(), and max_jit_mop_setup().

Here is the call graph for this function:

jit_object_classname()

t_symbol* jit_object_classname

(

void *

x

)

Retrieves an object's class name.

Parameters

x	object pointer

Returns

class name t_symbol pointer

References object_classname().

Referenced by jit_object_classname_compare(), and jit_object_exportattrs().

Here is the call graph for this function:

jit_object_classname_compare()

long jit_object_classname_compare	(	void *	x,
		t_symbol *	name
	)

Compares object's class name with the name provided.

Parameters

x	object pointer
name	name to compare with class name

Returns

1 if equal, 0 if not equal

References jit_object_classname().

Referenced by max_jit_obex_adornment_get().

Here is the call graph for this function:

jit_object_detach()

t_jit_err jit_object_detach	(	t_symbol *	s,
		void *	x
	)

Detaches a client object from a named server object.

Parameters

s	name of server object
x	client object pointer

Returns

t_jit_err error code

References jit_err_from_max_err(), and object_detach().

Referenced by max_jit_mop_free().

Here is the call graph for this function:

jit_object_exportattrs()

t_jit_err jit_object_exportattrs	(	void *	x,
		t_symbol *	s,
		long	argc,
		t_atom *	argv
	)

Exports object attributes to an XML file.

Parameters

x	object pointer
s	ignored
argc	argument count
argv	argument vector

Returns

t_jit_err error code

References _jit_sym_getname, freebytes(), gensym(), jit_atom_setsym(), jit_object_classname(), jit_object_free(), object_attr_get(), t_symbol::s_name, and symbolarray_sort().

Referenced by jit_class_new(), and max_jit_classex_standard_wrap().

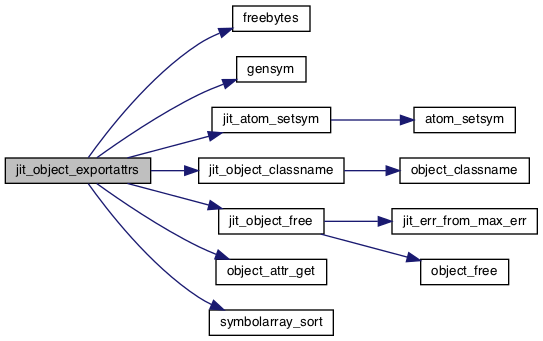

Here is the call graph for this function:

jit_object_exportsummary()

t_jit_err jit_object_exportsummary	(	void *	x,
		t_symbol *	s,
		long	argc,
		t_atom *	argv
	)

Exports object summary to an XML file.

Warning

Currently this function does nothing, but is reserved for future use.

Parameters

x	object pointer
s	ignored
argc	argument count
argv	argument vector

Returns

t_jit_err error code

Referenced by max_jit_classex_standard_wrap().

jit_object_findregistered()

void * jit_object_findregistered

(

t_symbol *

s

)

Retrieves a registered object associated with name.

Parameters

s	registered name

Returns

If successful, object pointer. Otherwise NULL.

References object_findregistered().

Referenced by jit_matrix_jit_gl_texture(), jit_matrix_op(), max_jit_mop_jit_matrix(), and max_jit_mop_notify().

Here is the call graph for this function:

jit_object_findregisteredbyptr()

t_symbol* jit_object_findregisteredbyptr

(

void *

x

)

Retrieves a registered object's name.

Parameters

x	object pointer

Returns

If successful, t_symbol pointer name. Otherwise NULL.

References object_findregisteredbyptr().

Here is the call graph for this function:

jit_object_free()

t_jit_err jit_object_free

(

void *

x

)

Frees an object.

Parameters

x	object pointer

Returns

t_jit_err error code

References jit_err_from_max_err(), and object_free().

Referenced by jit_matrix_exprfill(), jit_matrix_new(), jit_matrix_newcopy(), jit_matrix_op(), jit_mop_free(), jit_mop_new(), jit_mop_newcopy(), jit_object_exportattrs(), jit_object_importattrs(), max_jit_mop_adapt_matrix_all(), max_jit_mop_free(), and max_jit_obex_free().

Here is the call graph for this function:

jit_object_getmethod()

method jit_object_getmethod	(	void *	x,
		t_symbol *	s
	)

Retrieves an object method specified by method name.

Parameters

x	object pointer
s	method name

Returns

method

References object_getmethod().

Referenced by jit_attr_filterget(), and jit_attr_filterset().

Here is the call graph for this function:

jit_object_importattrs()

t_jit_err jit_object_importattrs	(	void *	x,
		t_symbol *	s,
		long	argc,
		t_atom *	argv
	)

Imports object attributes from an XML file.

Parameters

x	object pointer
s	ignored
argc	argument count
argv	argument vector

Returns

t_jit_err error code

References _jit_sym_name, freebytes(), gensym(), jit_linklist_chuck(), jit_linklist_getindex(), jit_linklist_getsize(), jit_object_free(), and object_attr_setvalueof().

Referenced by jit_class_new(), and max_jit_classex_standard_wrap().

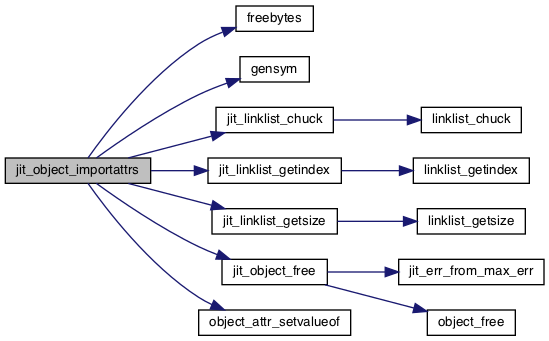

Here is the call graph for this function:

jit_object_method_argsafe_get()

t_symbol* jit_object_method_argsafe_get	(	void *	x,
		t_symbol *	s
	)

Checks to see if symbol is safe to call as an attribute style argument.

Parameters

x	object pointer
s	name as used via argument

Returns

If successful, name of method to map the argument name to. Otherwise, NULL.

References jit_class_method_argsafe_get(), and jit_object_class().

Referenced by max_jit_attr_args().

Here is the call graph for this function:

jit_object_method_imp()

void* jit_object_method_imp	(	void *	x,
		void *	s,
		void *	p1,
		void *	p2,
		void *	p3,
		void *	p4,
		void *	p5,
		void *	p6,
		void *	p7,
		void *	p8
	)

Calls an object method specified by method name.

This operation is untyped, and the contents of the stack following the method name argument are blindly passed to the method called.

Parameters

x	object pointer
s	method name
p1	untyped arguments passed on to the method
p2	untyped arguments passed on to the method
p3	untyped arguments passed on to the method
p4	untyped arguments passed on to the method
p5	untyped arguments passed on to the method
p6	untyped arguments passed on to the method
p7	untyped arguments passed on to the method
p8	untyped arguments passed on to the method

Warning

It is important to know any necessary arguments for untyped constructors such as those used by jit_matrix or jit_attr_offset.

Returns

method dependent, but uses void * as a super type.

jit_object_method_typed()

void* jit_object_method_typed	(	void *	x,
		t_symbol *	s,
		long	ac,
		t_atom *	av,
		t_atom *	rv
	)

Calls a typed object method specified by method name.

This operation only supports methods which are typed–i.e. it cannot be used to call private, untyped A_CANT methods.

Parameters

x	object pointer
s	method name
ac	argument count
av	argument vector
rv	return value for A_GIMMEBACK methods

Returns

method dependent, but uses void * as a super type.

References object_method_typed().

Here is the call graph for this function:

jit_object_new_imp()

void* jit_object_new_imp	(	void *	cn,
		void *	p1,
		void *	p2,
		void *	p3,
		void *	p4,
		void *	p5,
		void *	p6,
		void *	p7,
		void *	p8,
		void *	dummy
	)

Instantiates an object specified by class name.

This function may used to create instances of any Jitter object.

Parameters

cn	class name
p1	untyped arguments passed on to the constructor
p2	untyped arguments passed on to the constructor
p3	untyped arguments passed on to the constructor
p4	untyped arguments passed on to the constructor
p5	untyped arguments passed on to the constructor
p6	untyped arguments passed on to the constructor
p7	untyped arguments passed on to the constructor
p8	untyped arguments passed on to the constructor
dummy	unused

Warning

It is important to know any necessary arguments for untyped constructors such as those used by jit_matrix or jit_attr_offset.

Returns

If successful, a valid object pointer. Otherwise, NULL.

jit_object_notify()

t_jit_err jit_object_notify	(	void *	x,
		t_symbol *	s,
		void *	data
	)

Notifies all client objects for a named server object.

Parameters

x	server object pointer
s	notification message
data	message specific data

Returns

t_jit_err error code

References object_notify().

Referenced by jit_matrix_setinfo(), and jit_matrix_setinfo_ex().

Here is the call graph for this function:

jit_object_register()

void* jit_object_register	(	void *	x,
		t_symbol *	s
	)

Registers an object in the named object registry.

Parameters

x	object pointer
s	object name

Returns

object pointer

Warning

It is important to use the object pointer returned by jit_object_register, since if there is an existing object with the same name and class, it could free the input object and pass back a reference to the previously defined object.

References object_register().

Referenced by max_jit_mop_inputs(), max_jit_mop_notify(), and max_jit_mop_outputs().

Here is the call graph for this function:

jit_object_unregister()

t_jit_err jit_object_unregister

(

void *

x

)

Unregisters an object from the named object registry.

Parameters

x	object pointer

Returns

t_jit_err error code

References jit_err_from_max_err(), and object_unregister().

Here is the call graph for this function:
