The dataview object. More...

#include <jdataview.h>

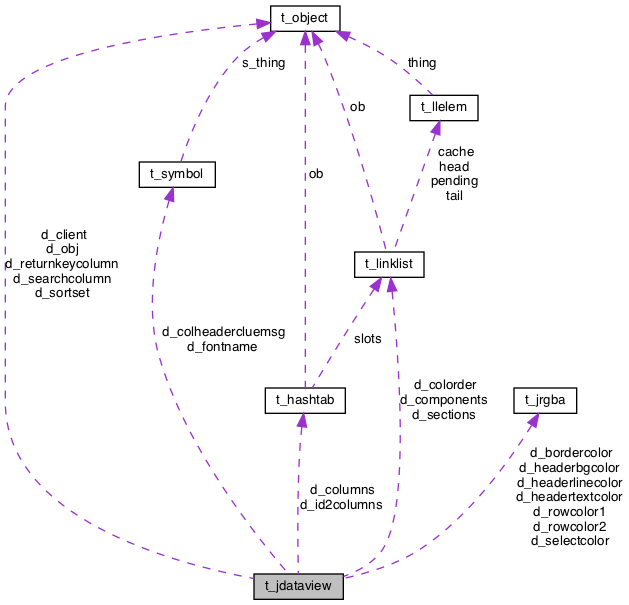

Collaboration diagram for t_jdataview:

Data Fields
t_linklist *	d_components
	list of DataViewComponents showing this dataview

t_object *	d_client
	object that will be sent messages to get data to display

t_hashtab *	d_columns
	columns – point to t_jcolumn objects

t_hashtab *	d_id2columns
	columns from column IDs

t_linklist *	d_colorder
	current order of columns

void *	d_rowmap_obsolete
	no longer used

long	d_numcols
	number of columns

double	d_rowheight
	fixed height of a row in pixels

char	d_autoheight
	height determined by font

char	d_hierarchical
	does it allow hierarchical disclosure (true / false) – not implemented yet

t_jrgba	d_rowcolor1
	odd row color (striped)

t_jrgba	d_rowcolor2
	even row color

t_jrgba	d_selectcolor
	color when rows are selected

t_jrgba	d_bordercolor
	border color

char	d_bordercolorset
	was border color set? if not, use JUCE default

char	d_canselectmultiple
	multiple rows are selectable

char	d_cancopy
	copy enabled

char	d_cancut
	cut / clear enabled

char	d_canpaste
	paste enabled

char	d_canrearrangerows
	rows can be dragged to rearrange – may not be implemented yet

char	d_canrearrangecolumns
	columns can be dragged to rearrange

long	d_viscount
	number of visible views of this dataview

long	d_inset
	inset for table inside containing component in pixels

char	d_autosizeright
	right side autosizes when top-level component changes

char	d_autosizebottom
	bottom autosizes when top-level component changes

char	d_dragenabled
	enabled for dragging (as in drag and drop)

t_symbol *	d_fontname
	font name

double	d_fontsize
	font size

t_symbol *	d_colheadercluemsg
	message to send requesting clue text for the column headers

char	d_autosizerightcolumn
	right column should stretch to remaining width of the dataview, regardless of column width

char	d_customselectcolor
	send getcellcolor message to draw selected cell, don't use select color

void *	d_qelem
	defer updating

long	d_top_inset
	vertical inset for row background (default 0)

long	d_bottom_inset
	vertical inset for row background (default 0)

long	d_borderthickness
	border line thickness default 0 for no border

char	d_keyfocusable
	notify component to grab some keys

char	d_enabledeletekey
	delete key will delete selected rows

char	d_usegradient
	color rows with gradient between rowcolor1 (top) and rowcolor2 (bottom)

char	d_inchange
	in change flag for inspector end-change protection system

char	d_horizscrollvisible
	is horizontal scroll bar visible

char	d_vertscrollvisible
	is vertical scroll bar visible

char	d_scrollvisset
	has the scroll visibility ever been changed since the dv was created?

char	d_overridefocus
	override default focus behavior where ListBox is focused when assigning focus to the dataview

char	d_usesystemfont
	use system font (true by default)

t_object *	d_searchcolumn
	column we ask for celltext in order to navigate the selection via the keyboard

t_object *	d_returnkeycolumn
	column that is sent the return key when a given row is selected

void *	d_navcache
	sorted list of column strings for key navigation

char	d_usecharheight
	use font specified in points rather than pixels (default is pixels)

t_linklist *	d_sections
	list of sections

char	d_paintcellseparator
	should paint a line below a cell (grayish)

t_object *	d_sortset
	sort col saved when dv is invisible

Detailed Description

The dataview object.
